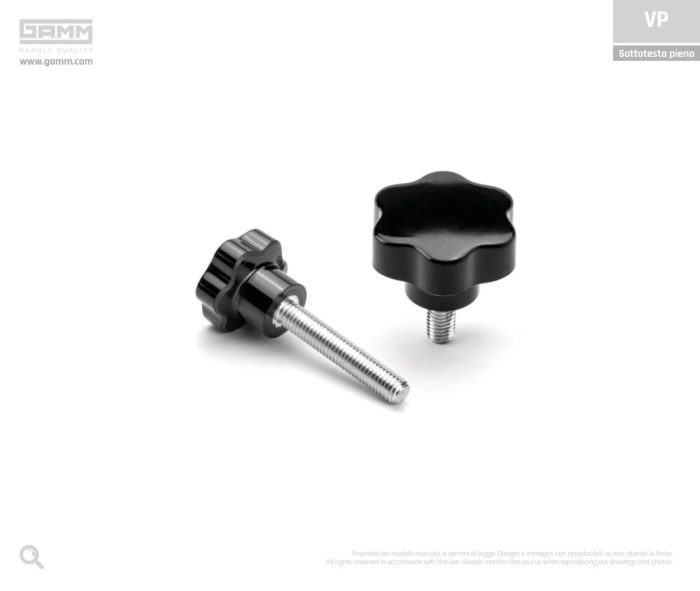

| Codice | Modello | A mm | B mm | C mm | F mm | G mm | D | L mm | Peso gr. | 3D |
|---|---|---|---|---|---|---|---|---|---|---|
| 6112005 | VP/20 M4x10 | 20 | 13 | 15 | 7 | 8 | M4 | 10 | 5 | 3D |
| 6112010 | VP/20 M4x15 | 20 | 13 | 15 | 7 | 8 | M4 | 15 | 5 | 3D |
| 6112015 | VP/20 M4x25 | 20 | 13 | 15 | 7 | 8 | M4 | 25 | 6 | 3D |
| 6112020 | VP/20 M5x10 | 20 | 13 | 15 | 7 | 8 | M5 | 10 | 6 | 3D |
| 6112025 | VP/20 M5x15 | 20 | 13 | 15 | 7 | 8 | M5 | 15 | 7 | 3D |
| 6112030 | VP/20 M5x20 | 20 | 13 | 15 | 7 | 8 | M5 | 20 | 8 | 3D |
| 6112035 | VP/20 M5x25 | 20 | 13 | 15 | 7 | 8 | M5 | 25 | 8 | 3D |
| 6112040 | VP/20 M6x10 | 20 | 13 | 15 | 7 | 8 | M6 | 10 | 7 | 3D |
| 6112045 | VP/20 M6x15 | 20 | 13 | 15 | 7 | 8 | M6 | 15 | 8 | 3D |
| 6112050 | VP/20 M6x20 | 20 | 13 | 15 | 7 | 8 | M6 | 20 | 9 | 3D |
| 6112055 | VP/20 M6x25 | 20 | 13 | 15 | 7 | 8 | M6 | 25 | 11 | 3D |
| 6112060 | VP/20 M6x35 | 20 | 13 | 15 | 7 | 8 | M6 | 35 | 12 | 3D |
| 6112065 | VP/30 M5x10 | 30 | 17 | 24 | 11 | 13 | M5 | 10 | 11 | 3D |
| 6112070 | VP/30 M5x20 | 30 | 17 | 24 | 11 | 13 | M5 | 20 | 17 | 3D |
| 6112075 | VP/30 M6x10 | 30 | 17 | 24 | 11 | 13 | M6 | 10 | 16 | 3D |
| 6112080 | VP/30 M6x15 | 30 | 17 | 24 | 11 | 13 | M6 | 15 | 18 | 3D |
| 6112085 | VP/30 M6x20 | 30 | 17 | 24 | 11 | 13 | M6 | 20 | 20 | 3D |
| 6112090 | VP/30 M6x25 | 30 | 17 | 24 | 11 | 13 | M6 | 25 | 21 | 3D |
| 6112095 | VP/30 M6x30 | 30 | 17 | 24 | 11 | 13 | M6 | 30 | 22 | 3D |
| 6112100 | VP/30 M6x35 | 30 | 17 | 24 | 11 | 13 | M6 | 35 | 23 | 3D |
| 6112105 | VP/30 M6x40 | 30 | 17 | 24 | 11 | 13 | M6 | 40 | 24 | 3D |
| 6112110 | VP/30 M8x15 | 30 | 17 | 24 | 11 | 13 | M8 | 15 | 23 | 3D |
| 6112115 | VP/30 M8x20 | 30 | 17 | 24 | 11 | 13 | M8 | 20 | 25 | 3D |
| 6112120 | VP/30 M8x25 | 30 | 17 | 24 | 11 | 13 | M8 | 25 | 26 | 3D |
| 6112121 | VP/30 M8x30 | 30 | 17 | 24 | 11 | 13 | M8 | 30 | 27 | 3D |
| 6112125 | VP/30 M8x35 | 30 | 17 | 24 | 11 | 13 | M8 | 35 | 30 | 3D |
| 6112130 | VP/30 M8x45 | 30 | 17 | 24 | 11 | 13 | M8 | 45 | 33 | 3D |
| 6112135 | VP/30 M8x60 | 30 | 17 | 24 | 11 | 13 | M8 | 60 | 37 | 3D |
NOTE:
Beaucoup d’option specialles a votre disposition sur demande.
