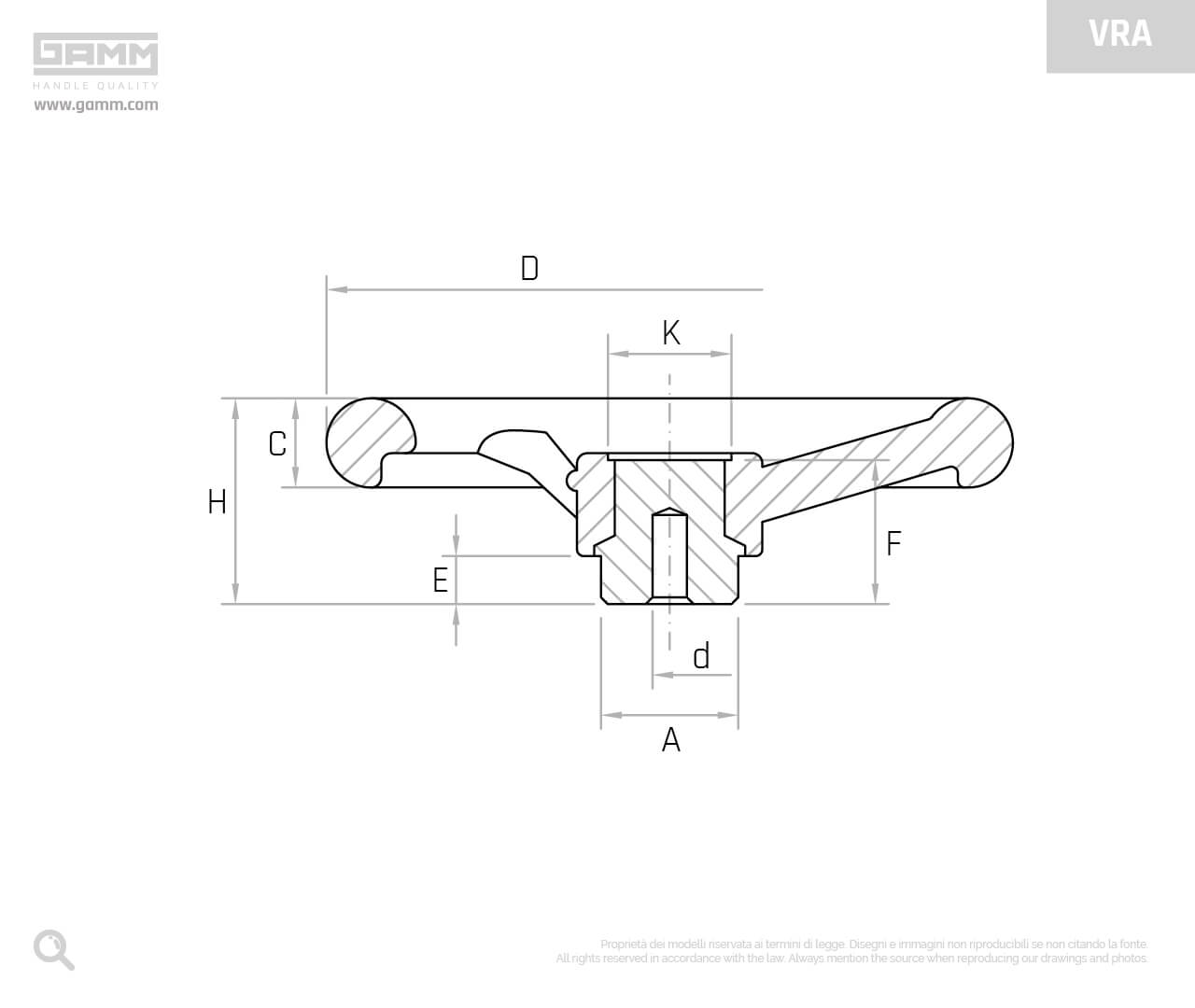

| Cod. | Modello | D mm | H mm | F mm | A mm | K mm | E mm | C mm | d mm | Peso gr | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6102005 | VRA/100 | 100 | 40 | 33 | 24 | 19 | 11 | 15 | Ø4 | 182 | 3D |
| 6102010 | VRA/125 | 125 | 46 | 36 | 24 | 22 | 13 | 17 | Ø6 | 273 | 3D |
| 6102015 | VRA/150 | 150 | 49 | 37 | 32 | 27 | 13 | 20 | Ø6 | 437 | 3D |
| 6102020 | VRA/175 | 175 | 56 | 41 | 40 | 33 | 16 | 22 | Ø6 | 647 | 3D |
| 6102025 | VRA/200 | 200 | 61 | 44 | 40 | 34 | 16 | 24 | Ø6 | 778 | 3D |
| 6102030 | VRA/250 | 250 | 72 | 49 | 48 | 40 | 17 | 28 | Ø6 | 1283 | 3D |
| 6102035 | VRA/300 | 300 | 78 | 54 | 58 | 48 | 18 | 34 | Ø6 | 2180 | 3D |
NOTE:

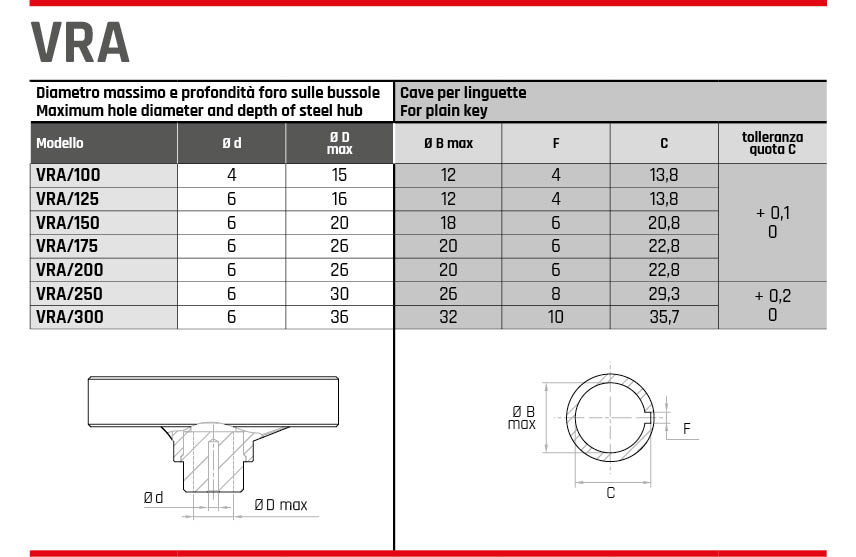

Special inch and metric bores, keyways, set screw holes, ect. available upon request.
